Index > Product > Copolymer Coated > Copolymer Coated Aluminum Tape

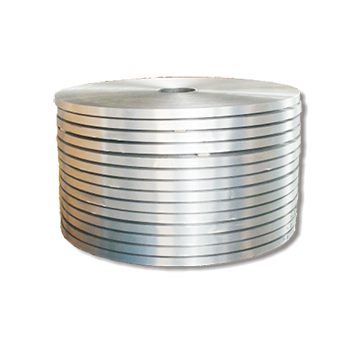

Copolymer coated aluminum tape applies for shielding and moisture barrier for copper pair cables. It consists of an aluminum tape coated on one side or both sides with an adherent ethylene copolymer with clear or blue color. The copolymer provides excellent adhesion to the aluminium substrate and has the chemical resistance and general characteristics of low-density polyethylene and gives excellent bond strength to all types of polyethylene. Aluminum alloys available 1050, 1060, 1200, 1145, 8011 according to customized requirements.
| Property | Unit | Values | Test Method | |
| Color | Natural or Blue | N/A | ||
| Thickness | Al | 0.15/0.20 | mm | N/A |
| EAA | 0.05 | mm | N/A | |
| Tensile Strength | MPa | ≥65 | ASTM E8 | |
| Elongation | % | ≥20 | ASTM E8 | |
| Peel strength | N/cm | ≥6.13 | ASTM B736 | |
| Heat Seal strength | N/cm | ≥17.5 | ASTM B736 | |
| Corrosion resistance | Grade | 7 | ||
| Filler/ Flood Resistance 68 deg C/168 hrs | No Delamination | REAPE-39,PE-89 | ||
| Water Resistance 68 deg C/ 168 hrs, Peel Strength68℃ | N/cm | ≥6.13 | ASTM B736 | |
| Dielectric Strength Two-Side, DC 1 Kv | No Break | |||
Inner Diameter 76/150/406mm |
Width | Outer Diameter | 卷芯材質(zhì) |
76/150/406mm |
10mm-1000mm |
Upto 1200mm |
paper/steel/plastic cire |
Keep the warehouse clean. Avoid exposure to direct sunlight, pollution and all damage cuased by external forces.
Skilled operators should take or lay the materials gently, avoid scrap and crash problems.
The above mentioned data sheet should, however, only be regarded as a general guide to product properties and not as a guarantee. Some of the properties can be changed as a result of our efforts to improve the quality of our products. All listed test method is just for reference, actual test performed according to modified equipment and conditions.
